Amplifier Solutions
Example Products
FRTek can create competitive custom amplifier products for any frequency band and application.

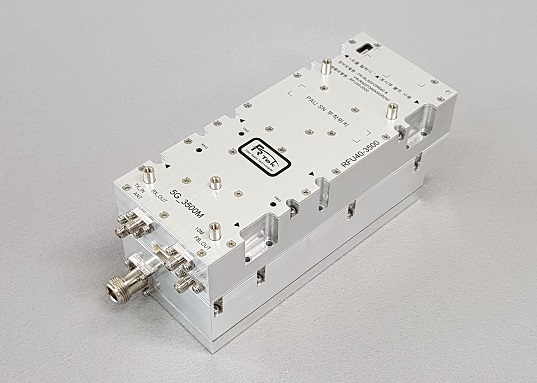

FR-DDG3547-100BTF
| TYPE | DPD AMP | SERVICE | TD-LTE (5G) |
|---|---|---|---|
| FREQUENCY | 3500MHz ~ 3600MHz | BAND WIDTH | 100MHz |
| POUT | +47dBm (50W) | GAIN | 72.0dB |
| PAPR | 8.5dB | VDC | +50.2V / +5.6V |
| SISO/MIMO | SISO (1Tx / 1Rx) | DETAIL (DOWNLOAD) |
ddg3547-100btf_dimension.pdf |
| SIZE | 70 x 175 x 72.1 (mm) |
